Mulčovač priekopový BOWELL BCRI-180C 50-80hp
- Výrobca: DELEKS Taliansko
- Kód produktu: BOWELL BCRI-180C
- Dostupnosť: Skladom
2400,00 €
Bez DPH: 2400,00 €
BCRI-series
Bowell BCRI-flail mowers now powered by gear boxes from
Heavy duty embankment /verge flail mower with hydraulic swivel arm for medium and larger tractors with 40hp to 120hp engines with CAT II 3-point hitches.
The Bowell BCRI verge flail mower series is equipped with a large and extremely powerful transmission made by the famous italian factory Comer, making this embankment mower the perfect choice for medium and larger tractors. These professional mowers come with working widths of up to 240cm and a hydraulic swivel arm for maximum flexibility and a mowing range angle from -60° to +90°. The maximum distance from the middle of the tractor to the right side of the mower is up to 360cm, depending on the BCRI-modell. In combination with the right tractor BCRI-mowers are superior to almost any vegetation and can still offer high work efficiency.

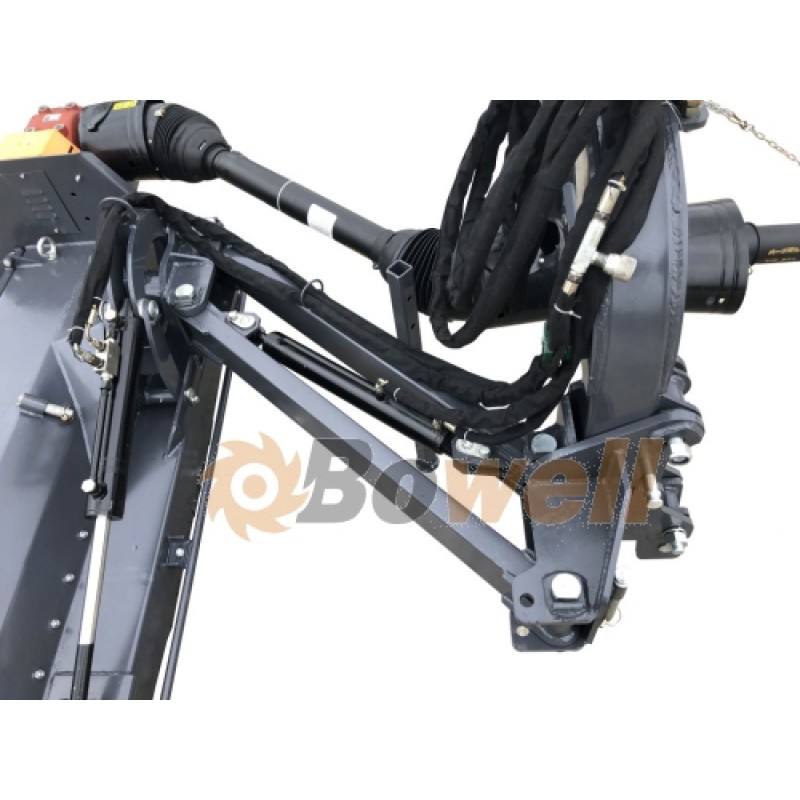

The hydraulic swivel arm not only allows mowing in almost any position, but it also saves manoeuvring in narrow corners when you use the BCRI as regular flail mower. Your tractor needs 2 double acting hydraulic control circuits in order to fully operate the swivel arm.
Mechanical crash protection system
The Bowell BCRI series offers a crash protection system, which lets the mower swing out to the back, in case you hit a solid piece of material. This additonal swivelling feature gives the tractor driver the opportunity to brake in time, before serious damage is done to the mower. This safety feature is totally maintenance free and runs reliably for years.
Bowell is using 12 to 22 of the new large forged and galvanized high performance flail hammers (depending on working width) - each with a weight of 1300gr - that ensure a perfect mowing result on grass, undergrowth and bushes up to 30mm in diameter. The mowing height is adjusted by the heavy self cleaning roller, to prevent the mower from cutting into the ground on bumpy surface. The new counter knifes help to even cut high grass with perfect efficiency.
The large professional Comer free-wheel transmission lets the knife shaft turn, once the PTO is switched off, so that its movement will not be transferred to the tractor. The mower´s front is equipped with safety flaps to prevent debris and stones being thrown out of the machine.
All BCRI-mowers have easily accessible grease nipples for easy service and height adjustable skids and support legs for storage. New double PTO shaft system uses a 80cm PTO shaft from tractor to 3-point hitch and a 140cm wide angle PTO shaft from hitch to mower gear box and is part of the accessory for all BCRI-flail mowers. The short and easy service plan in the user manual helps you on maintenance and service.
The new 2019 Bowell BCRI Series now has a large rear gate that can be opened for easy maintenance, but has to be closed for safety reasons during operation.
The new 2019 Bowell BCRI Series now has a large rear gate that can be opened for easy maintenance, but has to be closed for safety reasons during operation.
The completely assembled machine is delivered in the massive Bowell wooden case. Just the 3-point hitch, the hydraulic swivel arm and the PTO shaft protector have to be assembled, taking you less than 1h time. We offer an assembly guide with photos to assist you.
Like all other Bowell mowers, the BCRI series has an electronically balanced knife shaft which is driven by 4 belts. Despite the high knife weight of 1300gr each the Bowell belt system guarantees an almost 100% power transfer rate without belt problems. The heavy free-wheel gear box runs in an oil bath, so the transmission oil, that comes with the machine, has to be filled in before you first use the machine.
Underneath the massive 6mm steel housing sits the massive laser balanced knife shaft with 12 to 22 high performance forged and galvanized hammer shaped knifes, each with a weight of 1300gr. The knifes are made of hardened steel and can be individually exchanged and regrinded. Powered by the PTO shaft, the knife shafts turns with an amazing 2150 rpm and cuts the material down to a minimum, so that it can rot away fast. The heavy roller in the back of the mower guarantees smooth performance even on rough grounds
✅ large rear gate on the mower housing for easy maintenance
✅ new double PTO shaft system with wide angle PTO shaft
✅ crash protection device for more safety
✅ 2L transmission gear oil included
✅ reinforced Cat-2 3-point hitch
✅ new forged 1300gr high performance hammer flails
✅ replaceable counter knives for optimal shredding
✅ 4 belts drive system
✅ easy testing of belt tension
The Bowell BCRI embankment/verge flail mowers complies with all safety regulations and is CE tested following the 2006/42/EC machine directive.
✅ large rear gate on the mower housing for easy maintenance
✅ new double PTO shaft system with wide angle PTO shaft
✅ crash protection device for more safety
✅ 2L transmission gear oil included
✅ reinforced Cat-2 3-point hitch
✅ new forged 1300gr high performance hammer flails
✅ replaceable counter knives for optimal shredding
✅ 4 belts drive system
✅ easy testing of belt tension
The Bowell BCRI embankment/verge flail mowers complies with all safety regulations and is CE tested following the 2006/42/EC machine directive.
We from Bowell Tractor firmly believe that you will not find a better value for money heavy duty embankment lail mower in the market. Feel free to compare ours to the other products in the market and we are sure you will agree.

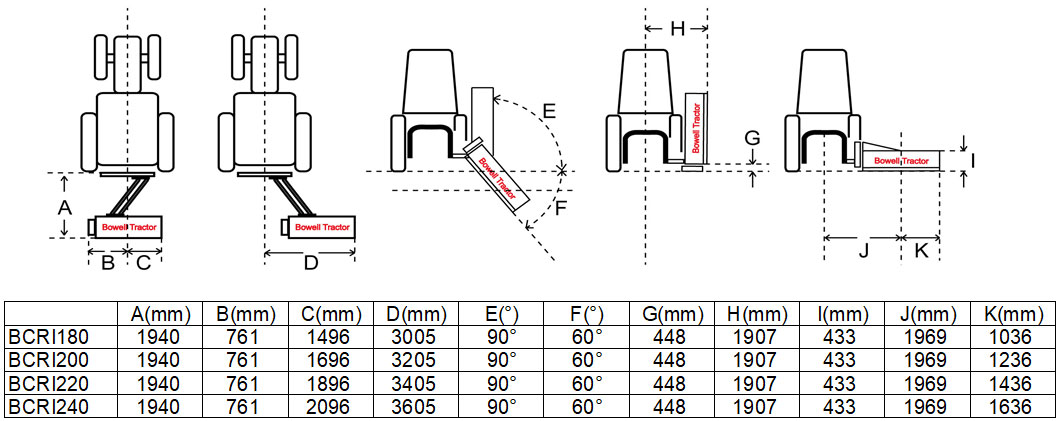

| Technical Data | BCRI-160 | BCRI-180 | BCRI-200 | BCRI-220 | BCRI-240 |
| Dimension (LxWxH) | 1880x1400x750mm | 2080x1400x750mm | 2280x1400x750mm | 2480x1400x750mm | 2680x1400x750mm |
| total weight incl. PTO shaft | 674kg | 719kg | 747kg | 779kg | 804kg |
| working width | 1600mm | 1800mm | 2000mm | 2200mm | 2400mm |
| adjustable mowing height | 20 – 75mm | ||||
| recommended grass height | < 100cm | ||||
| hydraulic side movement | 1540mm | ||||
| max. reach to the right from middle of tractor | 2805mm | 3005mm | 3205mm | 3405mm | 3605mm |
| max. reach from middle of tractor | 1907mm (in 90° position for hedge trimming) | ||||
| verge mowing angle | -60° to 90° | ||||
| 3-point hitch tractor | Cat II | ||||
| PTO shaft | 540 RPM clockwise | ||||
| length of PTO shafts | 800mm /1400mm (wide angle PTO) | ||||
| length of hydraulic pipes | 1800/2030/3080/3350mm | ||||
| work performance (approx.) | 5000 - 12000 m²/h | 6000 - 15000m²/h | 7000 - 17000 m²/h | 8000 - 20000 m²/h | 9000 - 22500 m²/h |
| no. of belts /width | 4 / 17mm | 4 / 17mm | 4 / 17mm | 4 / 17mm | 4 / 17mm |
| recommended tractor engine power | 40-60hp /30-44KW | 50-80hp /37-60KW | 50-80hp /37-60KW | 60-90hp /44-66KW | 70-120hp /52-89KW |
| mower body thickness | 4mm | ||||
| side wall thickness | 6mm | ||||
| painting | powder coating | ||||
| flail type | Hammer | ||||
| no. of flails (seperately exchangeable) | 14 | 16 | 18 | 20 | 22 |
| flail weight | 1300gr | ||||
| rotor shaft RPM | 2150 | ||||
| rotor shaft diameter /wall strength | 127mm /8mm | ||||
| rear roller diameter /wall strength | 194mm /6mm | ||||
| wooden transport box (LxWxH) | 222x113x99cm | 242x113x99cm | 262x113x99cm | 282x113x99cm | 302x113x99cm |
Žiadne súbory na stiahnutie
Štítky: bowell bcri-180c, mulcovac priekopovy bowell bcri-, deleks, priekopove mulcovace od 50 hp
